How Roofing Systems Are Layered During Installation Projects

Introduction

A roofing system is made up of several layers that work together to protect a building from rain, wind, heat, moisture, and other outdoor conditions. Although the finished roof may appear to be a single surface, the completed assembly usually contains multiple components installed in a carefully planned sequence. Each layer has a specific purpose, and the performance of the overall roof depends on how effectively these components work together.

Understanding how roofing systems are layered during installation helps explain why professional roof construction involves much more than placing shingles, tiles, metal panels, or membranes over a building. The layers beneath the visible roof covering provide structural support, moisture protection, drainage assistance, and other functions that contribute to long-term performance. If one layer is missing, damaged, or installed incorrectly, it can affect the performance of the layers above it.

The installation sequence is also important because many roofing components become concealed as construction progresses. Once a layer is covered, accessing it later may require removing part of the finished roof. For this reason, professional roofing crews inspect each stage carefully before moving forward with the next layer.

The exact arrangement can vary depending on the type of roofing system, building design, climate, roof slope, and applicable requirements. An asphalt shingle roof may use a different combination of materials from a standing-seam metal roof or a low-slope membrane system. Despite these differences, the basic concept remains the same: a complete roofing system is constructed from coordinated layers that provide support, protection, drainage, and weather resistance.

Understanding the Basic Roofing System

The roof deck generally forms the structural base of a roofing assembly. It provides the surface over which protective roofing components are installed and helps transfer the loads associated with the roofing system to the building structure. Depending on the building design, the deck may be made from materials such as plywood, oriented strand board, metal, concrete, or other approved structural products.

Above the structural deck, roofing systems commonly include one or more protective layers. These can include underlayment, specialized water-resistant membranes, flashing, insulation in certain systems, ventilation components, and the primary roof covering. The specific combination depends on the design and requirements of the roofing project.

The outermost roofing material is the layer most people associate with a roof. Shingles, tiles, metal panels, or membranes provide the primary exposed surface that interacts with weather conditions. However, this outer layer depends on the materials beneath it to provide additional protection and support.

A simplified roofing assembly can be understood as a coordinated sequence rather than a collection of unrelated materials. The main stages typically involve:

1. Preparing and inspecting the structural roof deck.
2. Installing required edge protection and protective membranes.
3. Installing underlayment and specialized moisture protection.
4. Integrating flashing and ventilation components.
5. Installing the primary roofing material.
6. Completing ridges, hips, edges, penetrations, and other finishing details.

This sequence can change according to the roofing system and project requirements. Professional installers should always follow the applicable product instructions and project specifications rather than applying one generic layering method to every roof.

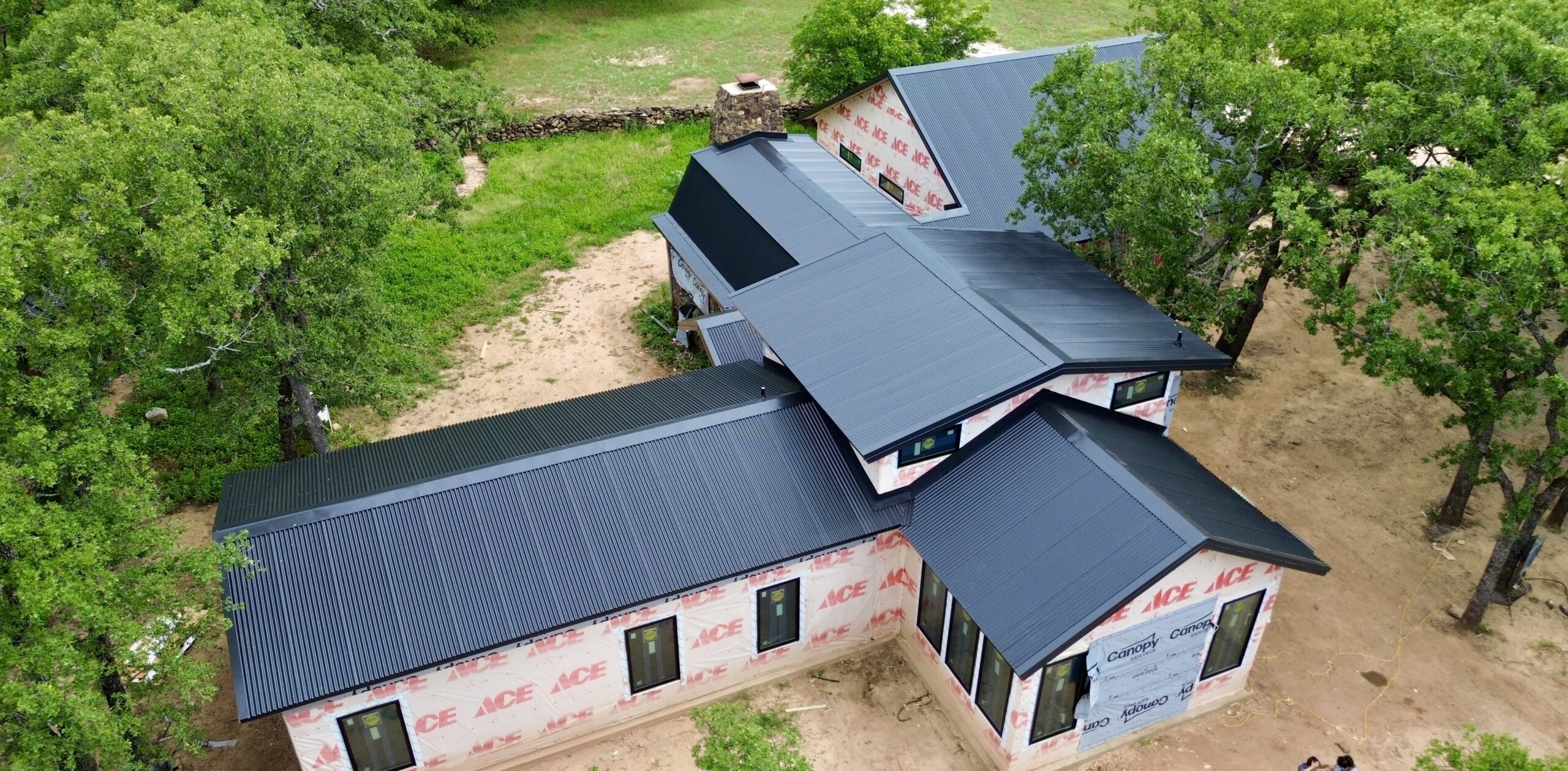

Roof Deck as the Foundation

The roof deck is one of the most important components of the roofing assembly because it supports the layers installed above it. Before any new roofing materials are applied, the deck should be inspected to determine whether it is structurally suitable for the planned installation. A damaged or deteriorated deck can create problems even when the visible roofing materials are installed correctly.

During preparation, roofing contractors should look for signs of rot, moisture damage, warping, deterioration, broken sections, and other conditions that could affect the installation. Soft or weakened areas may indicate long-term moisture exposure and may need to be repaired or replaced before the roofing system is installed. The deck should provide a stable and suitable base for the next layers.

The surface should also be reasonably clean before protective materials are installed. Loose debris, old fasteners, damaged materials, and other objects can interfere with proper placement. Removing unnecessary materials helps create a more consistent surface for underlayment and other components.

Deck fastening may also be reviewed as part of the preparation process. Loose sections or improperly secured deck materials can move beneath the roofing assembly and contribute to installation difficulties. Addressing these concerns before the protective layers are applied is generally easier than attempting to correct them after the roof has been completed.

Deck Preparation Before Roofing Layers

Proper preparation of the roof deck creates the foundation for the entire roofing installation. Once old roofing materials have been removed where required, the exposed deck can be examined more closely. This stage allows contractors to identify conditions that may have been hidden beneath the previous roof covering.

Moisture damage deserves particular attention during this stage. Water may have entered through old flashing, damaged roofing materials, failed seals, or drainage problems, causing deterioration that is not visible until the roof covering is removed. Any damaged areas should be evaluated and addressed before new roofing layers cover them.

The deck should also be checked around penetrations and roof edges. Openings for vents, pipes, skylights, and other features require careful coordination with the layers that will be installed later. Preparing these areas early helps the roofing crew establish a clean and organized installation sequence.

A prepared roof deck should be free from unnecessary debris and should provide a suitable base for the planned roofing assembly. Contractors should also verify measurements, roof geometry, slopes, and other project details before proceeding. This reduces the possibility of discovering major preparation problems after expensive roofing materials have already been installed.

Drip Edge and Roof Edge Components

Roof edges are exposed to water movement and weather conditions, making edge protection an important part of many roofing systems. Drip edge components are commonly used along appropriate roof boundaries to help direct water away from vulnerable edge areas. They also provide a finished transition between the roof covering and the building’s edge.

The placement of edge components needs to coordinate with the other roofing layers. The relationship between the drip edge, underlayment, roof covering, and fascia can vary depending on the roof design and installation requirements. Following the correct sequence helps ensure that water is directed toward the drainage system rather than behind vulnerable components.

Eave and rake edges may require different installation details. The roofing crew should understand the requirements for each location and make sure the components are properly aligned and secured. Poorly installed edge materials can create both functional and appearance-related concerns.

Edge protection should be inspected before the installation progresses too far. Any loose, damaged, poorly aligned, or incomplete sections should be corrected while the area remains accessible. Early inspection helps prevent the need to disturb finished roofing materials later.

Underlayment Layer

Underlayment is an important protective layer installed beneath many types of roof coverings. It provides an additional barrier against moisture and can help protect the roof deck when water reaches areas beneath the primary roofing material. Underlayment is particularly important because the outer roof covering is not always the only line of defense against weather.

Several types of underlayment products may be used depending on the roofing system. Traditional felt, synthetic underlayment, and self-adhered membranes can have different installation procedures and performance characteristics. The selected product should be appropriate for the roof and installed according to its applicable requirements.

Coverage and overlap are important considerations during installation. Underlayment sections should be positioned to provide continuous protection across the required roof areas, with seams and overlaps arranged appropriately. Gaps, unnecessary wrinkles, damaged sections, or improperly positioned material can reduce the effectiveness of this protective layer.

Fastening requirements also vary between products. Some underlayments are mechanically fastened, while others use adhesive backing or other approved attachment methods. The roofing crew should use the correct procedure for the product rather than assuming that every underlayment can be installed in the same way.

The underlayment should also be protected from unnecessary damage before the primary roof covering is installed. Workers, tools, fasteners, and equipment can puncture or tear exposed material during construction. Any damaged area should be evaluated and repaired according to the applicable installation requirements.

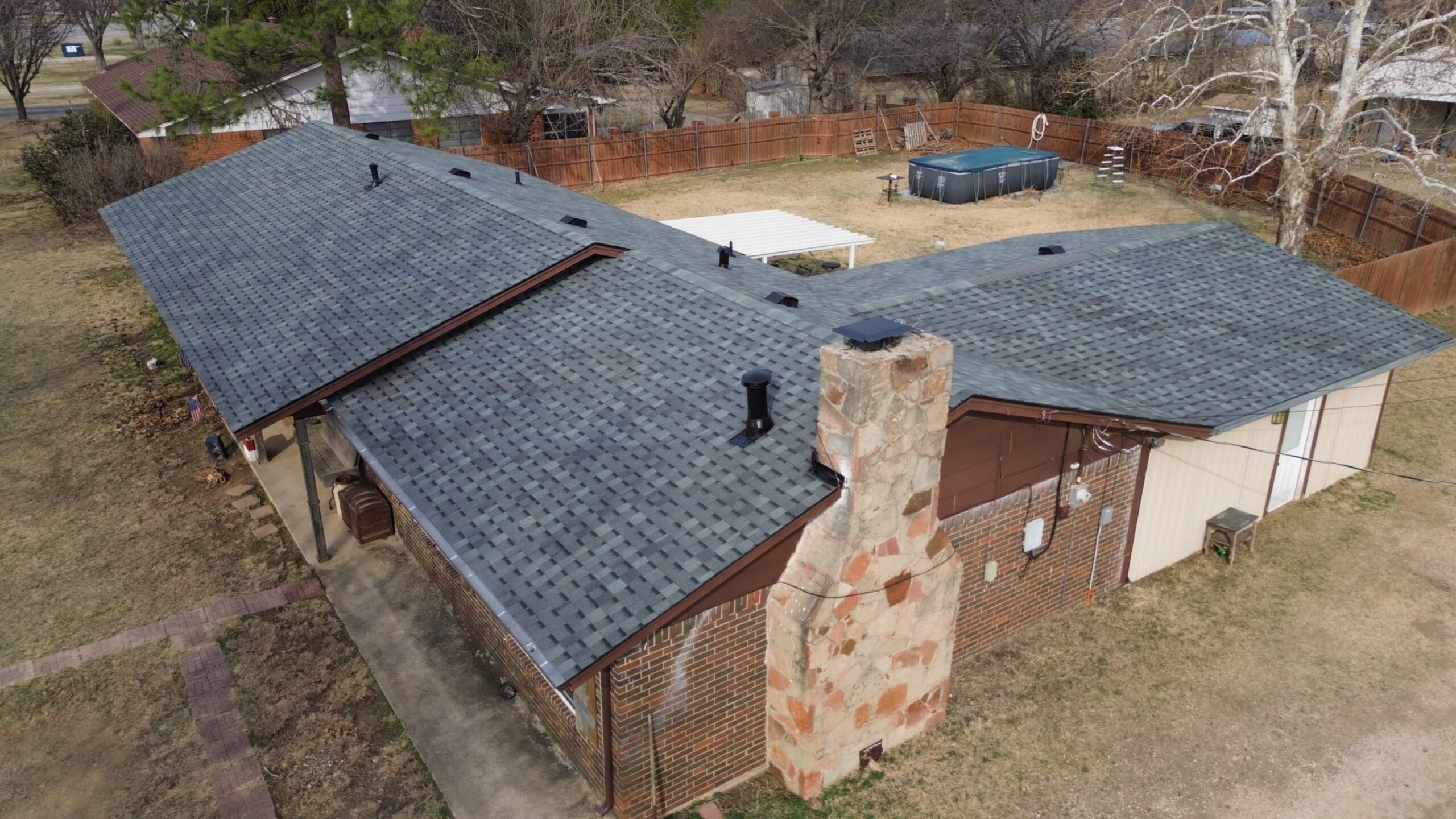

Ice and Water Protection Where Required

Some roofing systems require additional self-adhered protective membranes in areas that are particularly vulnerable to water intrusion. These products may be used at eaves, valleys, around penetrations, or other locations based on project requirements and local conditions. Their purpose is to provide an additional layer of protection beneath the primary roof covering.

The membrane must be installed over a suitable surface and according to the manufacturer’s instructions. The installation may require careful attention to surface preparation, adhesion, overlaps, and transitions. Improper application can create wrinkles, gaps, or adhesion problems that reduce the intended protection.

These membranes also need to be integrated with surrounding underlayment and flashing components. The goal is to create a coordinated moisture-control layer rather than several isolated pieces of material. Transitions should therefore be planned before installation so that water cannot easily move between unprotected areas.

Layering Around Roof Edges

Roof edges require coordination between several components because water leaves the roof through these areas. Underlayment, edge protection, and the primary roofing material need to be installed in a sequence that supports proper drainage. The exact arrangement can vary depending on the roof covering and the manufacturer’s installation requirements.

The installer should pay close attention to the lower edge of the roof where water is directed toward gutters or other drainage systems. Materials should not be arranged in a way that allows water to become trapped behind the edge components. Proper sequencing helps maintain a continuous path from the roof surface toward the drainage system.

Rake edges also require careful finishing because they are exposed to wind and weather. The edge components should be securely installed and properly integrated with the roofing covering. A clean and consistent edge contributes to the durability and appearance of the completed roof.

Preparing for the Next Roofing Layer

Before moving from one layer to another, the installation team should inspect the completed work. This is especially important for materials that will become hidden beneath subsequent layers. Once the next component has been installed, correcting a problem underneath may require removing otherwise usable roofing materials.

A staged inspection can include checking coverage, alignment, fastening, overlaps, damage, and transitions. Any defects should be addressed before the next layer is installed. This process helps ensure that the roofing assembly develops correctly from the structural base upward.

The transition between layers should also be considered rather than treating each component separately. The underlayment must work with flashing, edge protection must coordinate with drainage, and the primary roof covering must properly integrate with the protective materials below it. This coordination becomes increasingly important as the installation progresses toward more complex roof features.

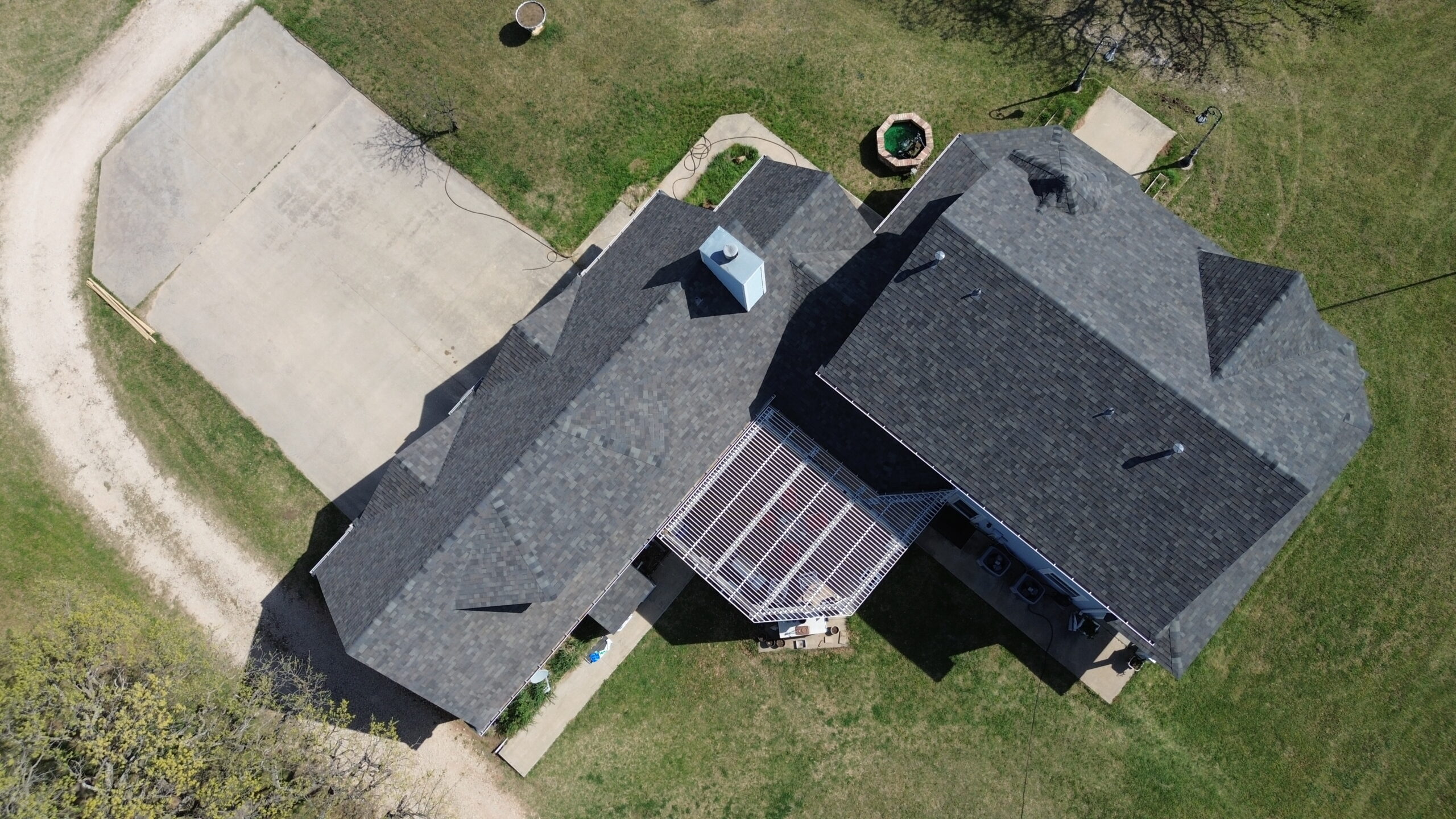

Flashing as a Critical Roofing Layer

Flashing is an essential part of a roofing system because it protects locations where water could otherwise enter through joints, transitions, and openings. Unlike the broad roof surface, these areas often involve changes in direction or different building materials meeting together. Properly installed flashing helps guide water away from vulnerable points and into the intended drainage path.

Flashing can be made from different materials depending on the roofing system and project requirements. Metal flashing is commonly used in many applications, while specialized membranes and other approved materials may be used in certain systems. The selected material needs to be compatible with the roofing products and suitable for the conditions in which it will be installed.

The installation sequence is particularly important around flashing. Components need to overlap and integrate with the surrounding roofing layers so that water flows over the appropriate surfaces instead of behind them. If flashing is installed without considering the layers beneath and above it, the completed roof may contain weak points that are difficult to identify after installation.

Step Flashing

Step flashing is commonly installed where a sloped roof meets a vertical wall. Individual pieces are arranged in a stepped pattern so that they coordinate with the roofing courses and help direct water away from the wall-to-roof transition. Each section needs to be correctly positioned and integrated with the surrounding materials.

The installation of step flashing generally progresses along with the roofing material rather than being treated as a completely separate layer. As each course of roofing material is installed, the appropriate flashing component is incorporated into the assembly. This creates a layered transition in which water is directed away from the joint.

Quality control is important because a missing or improperly positioned piece can create a pathway for moisture. The installer should maintain appropriate overlaps and ensure that flashing remains secure. The completed detail should also be checked for gaps, exposed areas, and other signs of incomplete installation.

Valley Flashing and Water Management

Roof valleys are areas where two sloping roof surfaces meet and where water from both sections is concentrated. Because a large amount of water can pass through these locations, valley construction requires careful planning. The valley layer should provide a clear and durable route for water to move toward the lower portion of the roof.

Valley protection can include specialized underlayment, metal flashing, membranes, or other approved components depending on the roofing system. These materials are installed beneath or alongside the primary roof covering to provide additional protection in an area exposed to concentrated water flow. The exact arrangement should follow the requirements of the selected roofing system.

The surrounding roofing material must then be installed without obstructing the valley drainage path. Cuts, overlaps, and transitions should be completed carefully so that water can continue moving freely. Poorly installed valley details can become a significant source of moisture problems even when the rest of the roof appears properly installed.

Chimney and Roof-to-Wall Flashing

Chimneys create large vertical interruptions in a roof surface and therefore require multiple layers of flashing and weather protection. Base flashing, step flashing, counterflashing, and other components may work together depending on the design. Each component needs to integrate with the surrounding roof and wall materials.

The flashing arrangement should direct water around the chimney rather than allowing it to collect at the base or sides. Corners and transitions require particular attention because these areas can be more difficult to seal and properly overlap. A complete installation should provide continuous protection around the chimney.

Other roof-to-wall transitions require similar care. Walls, dormers, sidewalls, and changes in building geometry can all create areas where water needs to be redirected. Proper layering ensures that the roofing materials, underlayment, and flashing work together rather than leaving exposed gaps between components.

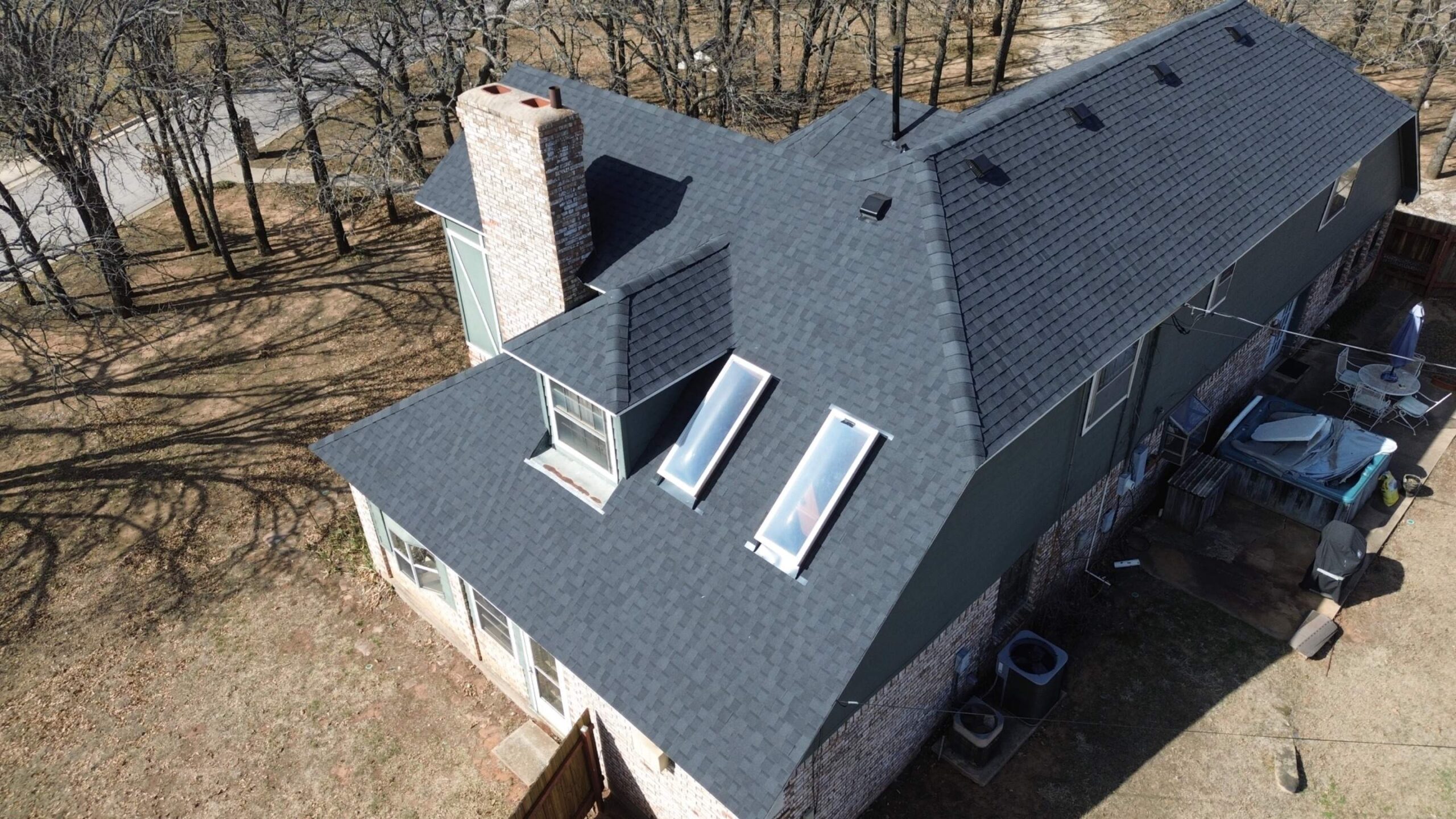

Plumbing Vent Flashing

Plumbing vents and other roof penetrations require specialized flashing because they create openings through the roofing assembly. A flashing boot or other approved component is installed around the penetration to help prevent water from entering the opening. The surrounding roofing materials must then be integrated with this component.

The flashing should fit securely around the pipe and remain properly positioned as the roof covering is installed. The surrounding shingles, panels, or membrane should be arranged to maintain the intended water-shedding path. Gaps or improperly finished edges around the penetration can create opportunities for moisture intrusion.

Because these components are relatively small, they can sometimes be overlooked during broad roof inspections. Professional installers should treat each penetration as an individual detail while also considering how it interacts with nearby roofing components. This attention to smaller areas helps maintain continuity throughout the roofing assembly.

Roof Ventilation Layer and Airflow

Ventilation is another important consideration in roofing system design and installation. A properly designed ventilation arrangement can help manage heat and moisture within the roof assembly. The ventilation system may include intake openings, exhaust vents, channels, and other components depending on the building design.

Soffit vents can provide intake airflow, while ridge vents or other exhaust components can allow warm or moist air to leave the roof area. These components need to work together as part of an airflow path rather than being installed independently. Blocking one part of the pathway can reduce the effectiveness of the entire ventilation arrangement.

Ventilation components should be integrated carefully with the surrounding roofing layers. Underlayment and roof coverings should not accidentally cover or obstruct openings that are intended to provide airflow. The installation team should verify the ventilation pathway before completing the upper roofing layers.

Ventilation also needs to be coordinated with ridge and roof-edge construction. The final roofing materials should protect ventilation openings from weather while allowing the designed airflow to continue. This balance is an important part of creating a complete roofing assembly.

Starter Roofing Materials

Starter materials are installed before the main field roofing material and provide an important foundation for the first visible courses. On shingle roofs, starter strips help establish the lower edge of the roofing pattern and contribute to weather resistance along the eaves. Their placement needs to be consistent and properly aligned with the roof edge.

The starter course should be installed according to the requirements of the selected roofing product. Incorrect positioning can affect the alignment of the courses that follow and may create gaps or other installation concerns. Because the starter material forms the base of the main roofing covering, its installation should be checked before the rest of the roof progresses.

The relationship between starter materials and drip edge components is also important. The two components need to work together to guide water toward the edge and protect the roof perimeter. Proper sequencing helps avoid conditions where water could move behind the edge protection or beneath the roofing material.

Main Roofing Covering

The primary roofing covering is the outermost major layer of many roofing systems. It provides the surface that is directly exposed to rain, wind, sunlight, and other environmental conditions. Depending on the project, this layer may consist of asphalt shingles, metal panels, clay or concrete tiles, synthetic products, or roofing membranes.

The installation method varies considerably between materials. Shingles are typically installed in overlapping courses, while metal panels may use interlocking seams or mechanically secured connections. Tile systems involve carefully arranged individual units, while membrane systems may use adhered, mechanically attached, or other approved installation methods.

Despite these differences, the main covering must be installed as a continuous weather-resistant surface. Materials should be properly aligned, overlapped, attached, and integrated with flashing and other roof features. Any gaps or incorrectly installed sections can weaken the protective function of the outer layer.

Manufacturer instructions are especially important at this stage. Roofing products may have specific requirements for fastening patterns, exposure, minimum slopes, overlaps, seams, or installation conditions. Professional crews should follow the requirements for the exact product being installed rather than relying solely on general experience.

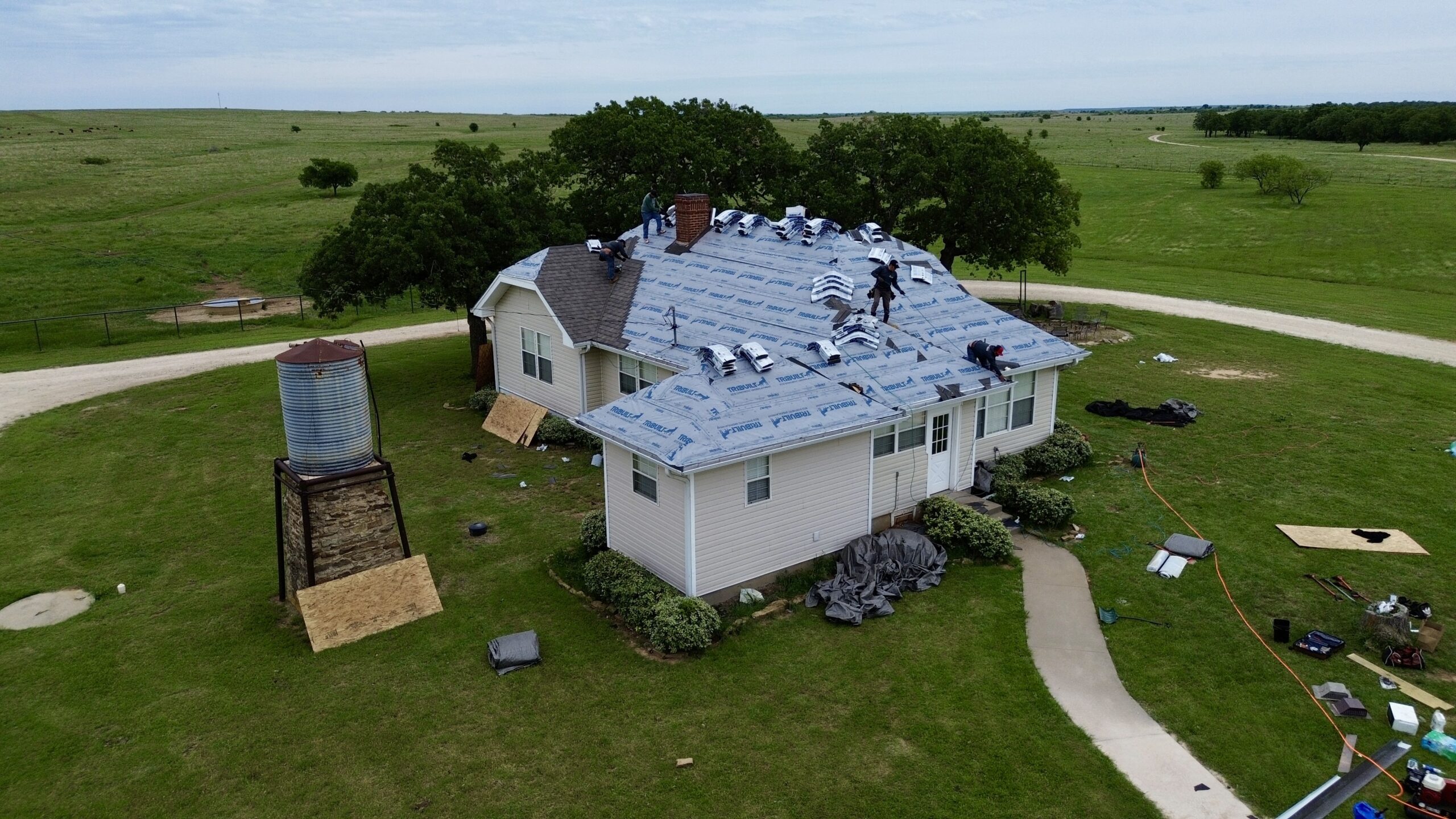

Shingle Layering

Asphalt shingles are generally installed from the lower portion of the roof upward in overlapping courses. This arrangement allows water to flow over the exposed portion of each shingle and toward the roof edge. The overlap between courses helps prevent water from reaching the underlying roof deck under normal conditions.

Each course should maintain the required exposure and alignment. Installers need to follow the specified layout pattern so that joints are appropriately positioned and the finished roof remains consistent. Poor alignment can affect the appearance of the roof and may indicate that installation requirements were not followed correctly.

Fasteners are also part of the shingle layering process. Nails or other approved fasteners should be placed in the required locations and driven correctly into the supporting structure. Incorrect fastening can reduce the ability of the shingles to remain securely attached during wind and other weather conditions.

Metal Roofing Layers

Metal roofing systems use panels or sheets that form the main exposed covering. Beneath the panels, the system may contain underlayment, specialized membranes, insulation, ventilation spaces, or other components depending on the building design. The metal panels then create the primary weather-resistant surface.

Panel seams and connections require careful installation because they form part of the system’s water management strategy. Seams, fasteners, penetrations, and transitions should be completed according to the product requirements. The panels also need sufficient support and appropriate attachment to handle expected environmental forces.

Metal roofing can expand and contract as temperatures change, so the installation system should account for movement where required. The appropriate clips, fasteners, seams, and details depend on the particular metal roofing product. Correct layering therefore requires more than simply placing metal sheets over the underlayment.

Tile Roofing Layers

Tile roofing systems may include several layers beneath the visible tile surface. The supporting deck is protected by underlayment and other moisture-control components, while battens, fastening systems, or other supporting elements may be used depending on the design. The tiles are then installed to provide the visible weather-resistant covering.

Tile placement needs to account for roof slope, alignment, fastening, and water movement. Individual tiles should be positioned so that their overlaps work together to shed water. Broken or improperly installed tiles can create weaknesses that may allow moisture to reach the layers beneath.

Because tile systems can involve considerable weight, the supporting roof structure should be appropriate for the system. The installation should follow the approved design and product requirements. This illustrates why a roofing system cannot be understood simply by looking at its outermost layer.

Layering Around Valleys

The layers around a valley need to work together to handle concentrated water flow. Protective membranes or underlayment are typically integrated with valley flashing or other approved valley components before the primary roof covering is completed. This creates additional protection in one of the most water-sensitive areas of the roof.

The primary roofing material is then installed around the valley while maintaining the intended drainage route. Materials should not be placed in a way that blocks the channel or causes water to flow underneath the protective layers. Careful cutting and fitting are important because valley areas require more precise installation than standard roof planes.

The completed valley should appear continuous and properly integrated with the surrounding roof. Inspectors should look for gaps, damaged materials, exposed fasteners, or other conditions that could compromise water management. Any issue should be corrected before the next stage of installation makes access more difficult.

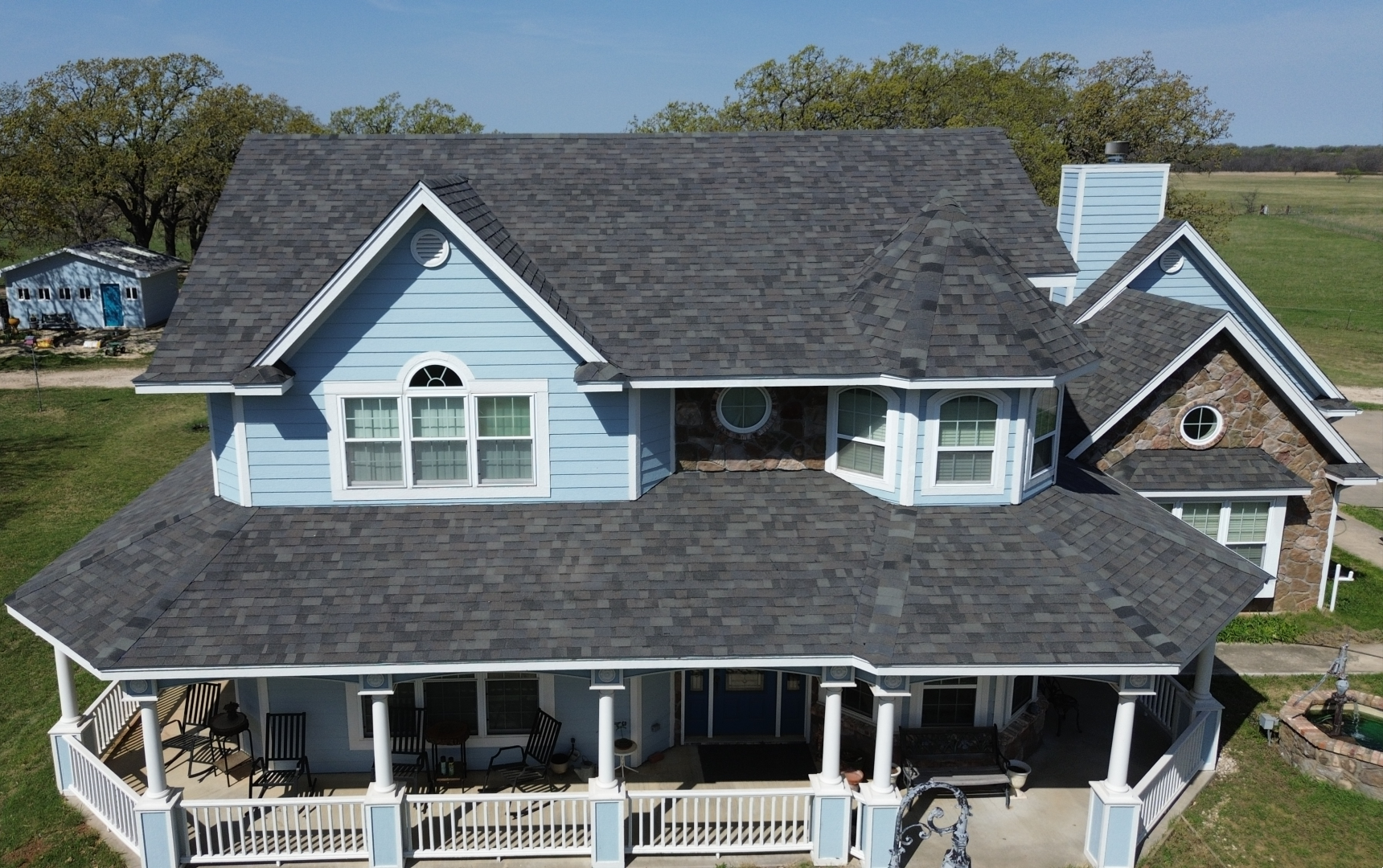

Layering Around Roof Penetrations

Roof penetrations require a coordinated arrangement of underlayment, flashing, sealants where applicable, and the primary roofing material. The protective layers need to extend appropriately around the penetration so that water cannot easily enter the opening. The flashing component then works with the roof covering to direct water away from the penetration.

The installation sequence can vary depending on the type of penetration and roofing material. A plumbing vent may use a flashing boot, while a skylight can require a more complex flashing system. Chimneys and roof-mounted equipment can involve several overlapping components.

Each penetration should be treated as a complete roofing detail rather than simply placing a seal around an opening. The surrounding roof materials should be installed in a sequence that supports water shedding. This layered approach helps maintain the continuity of the roofing system.

Roof-to-Wall and Roof-to-Roof Transitions

Transitions between roof surfaces require careful coordination because water may approach the joint from different directions. Roof-to-wall transitions typically use flashing and underlayment details to redirect water away from the wall. Roof-to-roof transitions may require specialized materials depending on the design.

The layers should overlap in a controlled sequence so that water remains above the protective surfaces. Any exposed gap between components can become a potential entry point for moisture. Inspecting these areas before the final roof covering is completed can help identify problems early.

Complex roof designs may contain multiple transitions close together. In such cases, installers need to plan the sequence carefully so that one component does not interfere with another. Proper planning helps maintain a continuous weather-resistant assembly throughout the roof.

Ridge, Hip, and Roof-Cap Layers

The uppermost areas of a roof require carefully installed finishing layers because they complete the weather-resistant enclosure. Ridges are the highest horizontal areas where two roof slopes meet, while hips are raised intersections between sloping roof sections. Depending on the roofing system, these areas may use ridge caps, hip caps, specialized metal components, or other approved materials.

Ridge and hip materials are installed after the main roof covering has reached these areas. The finishing components overlap the underlying roofing material and help prevent water from entering at the highest points of the roof. Proper attachment is also important because these areas can be exposed to strong wind forces.

Where a ridge ventilation system is used, the ridge cap must be installed in a way that protects the ventilation opening without blocking the intended airflow. The installer needs to coordinate the ventilation component with the uppermost roofing layer. This creates a finished ridge that can provide weather protection while allowing the roof assembly to ventilate as designed.

Hip areas require similar attention, although they may not contain ventilation openings. The cap materials should follow the roof line consistently and be securely attached according to the roofing system requirements. Uneven or poorly secured hip caps can affect both the appearance and weather resistance of the completed roof.

How the Complete Roofing Layers Work Together

A roofing system performs properly when all of its layers work together rather than functioning as isolated components. The roof deck provides the structural foundation, while underlayment and protective membranes add moisture resistance. Flashing manages water around vulnerable transitions, ventilation supports airflow where designed, and the primary roof covering provides the main exposed weather-resistant surface.

Each layer has a different role, but the boundaries between those roles need to be coordinated. For example, underlayment alone cannot compensate for incorrectly installed flashing, and a high-quality roof covering cannot correct a damaged roof deck beneath it. The complete assembly therefore depends on correct installation from the bottom layer upward.

Water management is one of the most important relationships between roofing layers. Rain should move over the outer roofing surface toward valleys, edges, and drainage components without being redirected beneath protective layers. Proper overlaps and sequencing help maintain this continuous path.

The same principle applies to roof penetrations and transitions. Flashing, underlayment, membranes, and roofing materials need to overlap in a planned sequence so that water is directed away from openings. When these components are installed independently without considering their relationship, weak points can develop in the finished system.

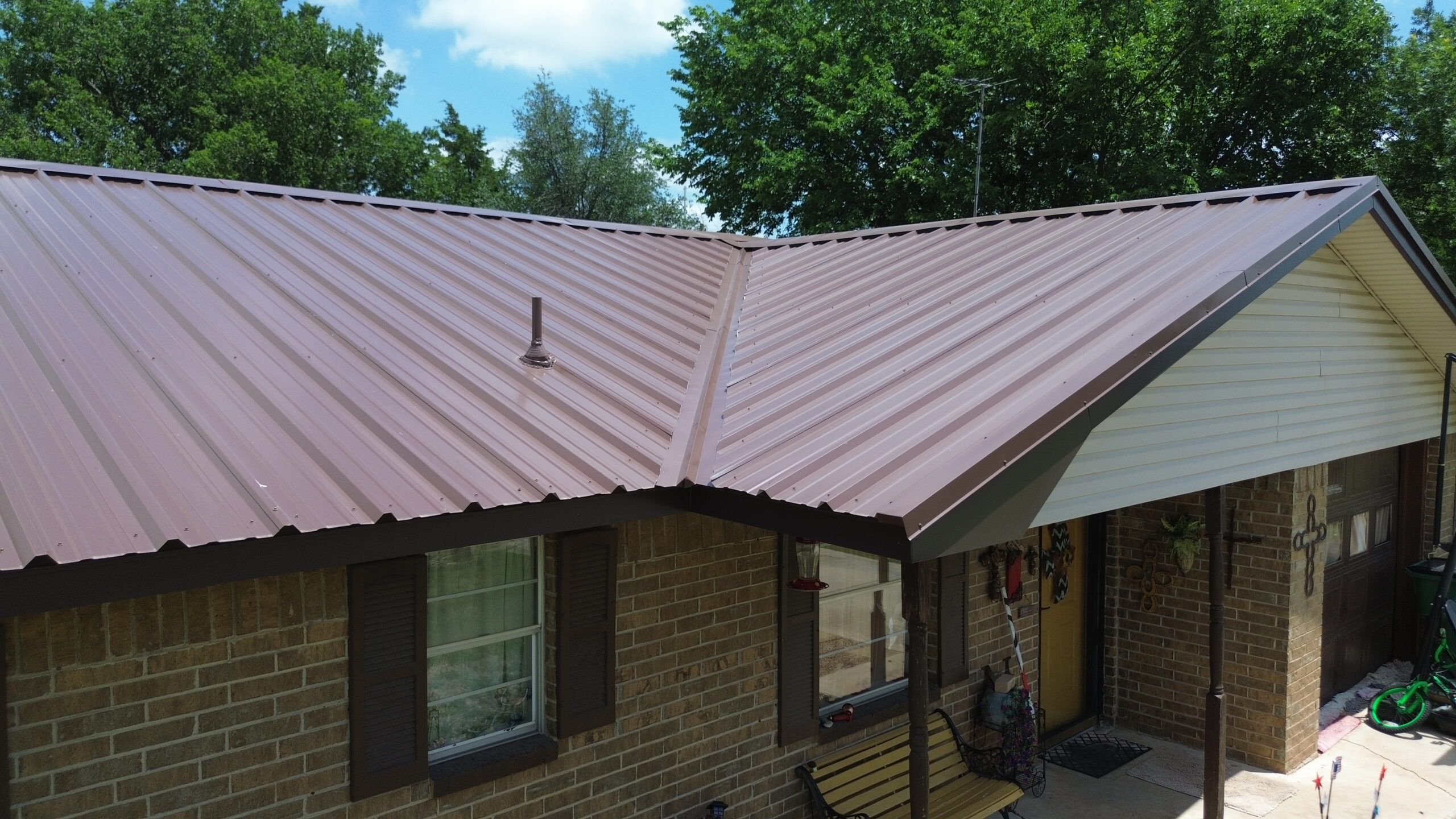

Quality Checks Between Roofing Layers

Inspection between installation stages is an important part of professional roofing work. Once a layer has been covered, inspecting it may require removing materials that have already been installed. Reviewing each stage before the next one begins gives contractors an opportunity to identify and correct problems while access remains available.

The roof deck should be approved before protective materials are installed. Underlayment and specialized membranes should then be checked before the main roof covering conceals them, while flashing and ventilation details should be reviewed before surrounding materials make access difficult.

Important quality checks include:

• Confirming that each layer provides the required coverage
• Checking overlaps, seams, and transitions
• Inspecting materials for damage before they are covered
• Verifying proper fastening or adhesion
• Confirming that drainage and ventilation pathways remain clear
• Checking that different roofing components are properly integrated

These checks should be documented when appropriate, particularly on larger or more complex projects. Photographs can provide useful evidence of concealed components such as roof deck repairs, underlayment, flashing, and ventilation preparation. Written inspection records can also help identify where corrections were made during construction.

Quality control should continue even when the installation appears visually consistent. A roof can look complete while still containing problems beneath the surface. Inspecting each layer during installation helps reduce the possibility of hidden defects becoming expensive problems later.

Common Layering Mistakes

Incorrect sequencing is one of the most important problems that can affect a layered roofing system. Roofing components are designed to interact in a particular order, and changing that sequence without an approved reason can interfere with water management. Installers should therefore understand how each material connects with the layers above and below it.

One common concern is incomplete underlayment coverage. If protective material does not extend across the required area or is damaged before the main roof covering is installed, the roof deck may have less protection than intended. These problems are easier to correct before the outer roofing material covers the area.

Poor flashing integration is another frequent concern. Flashing that is installed without appropriate overlap with underlayment or roofing materials can create a pathway for water. Transitions around walls, chimneys, valleys, and penetrations should receive particular attention.

Blocked ventilation can also result from incorrect layering. Underlayment, insulation, sealant, or roofing materials may accidentally cover an opening that was intended to provide airflow. Ventilation components should therefore be checked during and after installation to make sure the intended pathway remains open.

Fastening errors can affect several layers of a roofing system. Overdriven fasteners may damage materials, while underdriven or misplaced fasteners may not provide the intended attachment. The correct fastening method should be followed for each specific roofing component.

Another serious mistake is covering damaged or incomplete work. Once the next roofing layer has been installed, the underlying problem may be difficult to access. Professional crews should inspect completed stages and correct defects before continuing.

Roofing Layering by Roof Type

Not every roofing system uses exactly the same layers. The overall assembly depends on the roofing material, slope, building structure, climate, design requirements, and installation specifications. Understanding these differences is important because a method suitable for one roof should not automatically be applied to another.

Asphalt Shingle Systems

Asphalt shingle systems commonly begin with a structural roof deck followed by appropriate edge protection, underlayment, and additional protective membranes where required. Flashing is installed around vulnerable areas, while starter materials establish the lower edge before the main shingles are installed.

The shingles are then arranged in overlapping courses that direct water toward the lower roof edge. Ridge and hip components complete the upper sections, while ventilation may be integrated at the ridge and roof edges depending on the system design.

Metal Roofing Systems

Metal roofing assemblies can include a structural deck, underlayment, insulation or thermal components where applicable, flashing, and metal panels. The panels form the primary exterior layer and are attached using the fastening or clip system specified for the product.

Seams and penetrations require particular attention because metal panels can expand and contract with temperature changes. The complete system must account for movement while maintaining weather resistance. Ridge, eave, valley, and sidewall details are installed as coordinated parts of the metal roofing assembly.

Tile Roofing Systems

Tile roofs commonly use a structural deck, underlayment or protective membrane, flashing, and tile covering. Depending on the design, additional support or fastening components may be used beneath the visible tiles.

Tiles overlap each other to help shed water and are arranged across the roof surface according to the required pattern. Valleys, ridges, hips, and penetrations require specialized detailing because the individual tiles need to integrate with other roofing components.

Low-Slope Membrane Systems

Low-slope roofing systems can use assemblies that differ significantly from steep-slope shingle or tile roofs. Depending on the design, the layers may include a structural deck, vapor-control components, insulation, cover boards, membranes, flashing, and drainage components.

The membrane becomes a major part of the weather-resistant layer, while seams and penetrations require carefully installed details. Because water may move more slowly across a low-slope surface, drainage design is particularly important. The complete assembly should be installed according to the specific membrane system and project requirements.

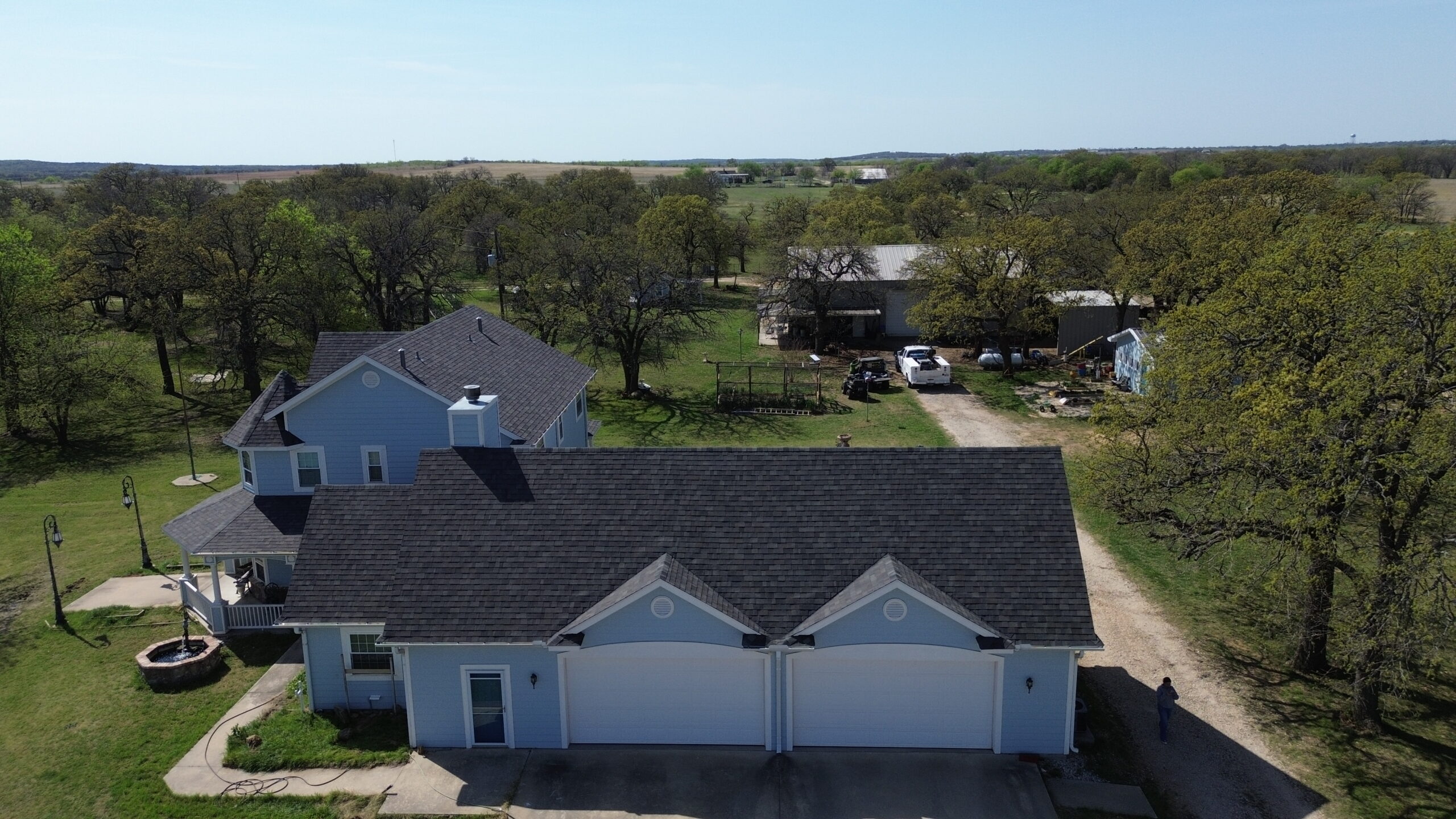

Final Roofing System Inspection

After all roofing layers have been installed, the completed system should receive a systematic final inspection. The inspection should review the visible roof covering as well as the details that connect the different layers together. The goal is to confirm that the completed roof is functional, properly finished, and free from obvious installation defects.

The main roof surface should be checked for damaged materials, inconsistent alignment, missing components, and visible fastening concerns. Roof edges, valleys, ridges, hips, flashing, and penetrations should then be reviewed individually. These areas often contain several overlapping layers and therefore deserve particular attention.

Drainage should also be checked during the final inspection. Valleys and roof surfaces should provide clear paths toward gutters, outlets, or other approved drainage components. Construction debris should be removed because even small pieces of roofing material can obstruct drainage channels.

Ventilation components should be reviewed to ensure that the intended airflow pathways remain clear. Ridge vents, soffit vents, and other components should not be accidentally covered by roofing materials or debris. The final installation should protect these openings from weather while maintaining their intended function.

The surrounding property should also receive a final cleanup. Roofing materials, packaging, loose fasteners, and construction waste should be removed from accessible areas. A complete project includes not only the roof itself but also leaving the work area clean and safe.

Roofing Layering Checklist

A simple checklist can help contractors and inspectors review the major components of a layered roofing system. The exact requirements should always be adapted to the specific roof and manufacturer instructions, but a general review can include the following stages:

1. Inspect the structural roof deck and correct damaged areas.
2. Prepare roof edges and install required edge protection.
3. Install underlayment and additional moisture protection where required.
4. Complete flashing around valleys, walls, chimneys, and penetrations.
5. Establish required ventilation pathways and components.
6. Install starter materials where required by the roofing system.
7. Install the main roofing covering according to product requirements.
8. Complete ridge, hip, valley, edge, and penetration details.
9. Inspect the finished roof and correct visible defects.
10. Remove construction debris and complete final documentation.

This sequence provides a useful overview, but roofing systems can vary significantly. Contractors should always follow the approved installation method for the specific products being used rather than treating the checklist as a universal construction specification.

Long-Term Benefits of Proper Roofing Layering

Correct layering can contribute significantly to the long-term performance of a roofing system. When the structural base, protective membranes, flashing, ventilation, and outer covering are installed correctly, each component can perform its intended function. This coordinated approach can help reduce the risk of moisture intrusion and premature deterioration.

Proper layering can also make the roofing system easier to maintain. When components are installed in a logical and documented sequence, future inspections can provide a clearer understanding of how the roof was constructed. Maintenance professionals can then better identify the locations and functions of important roofing components.

Another benefit is improved resistance to changing weather conditions. The outer roof covering handles direct exposure, while the layers beneath provide additional protection and support. Together, these components create a more complete barrier against rain, wind, temperature changes, and moisture.

Correct installation can also reduce the likelihood of unnecessary repairs caused by preventable workmanship problems. A missing flashing component or improperly installed underlayment may be difficult to correct after the roof is complete. Addressing such issues during installation is generally more efficient and helps preserve the integrity of the entire assembly.

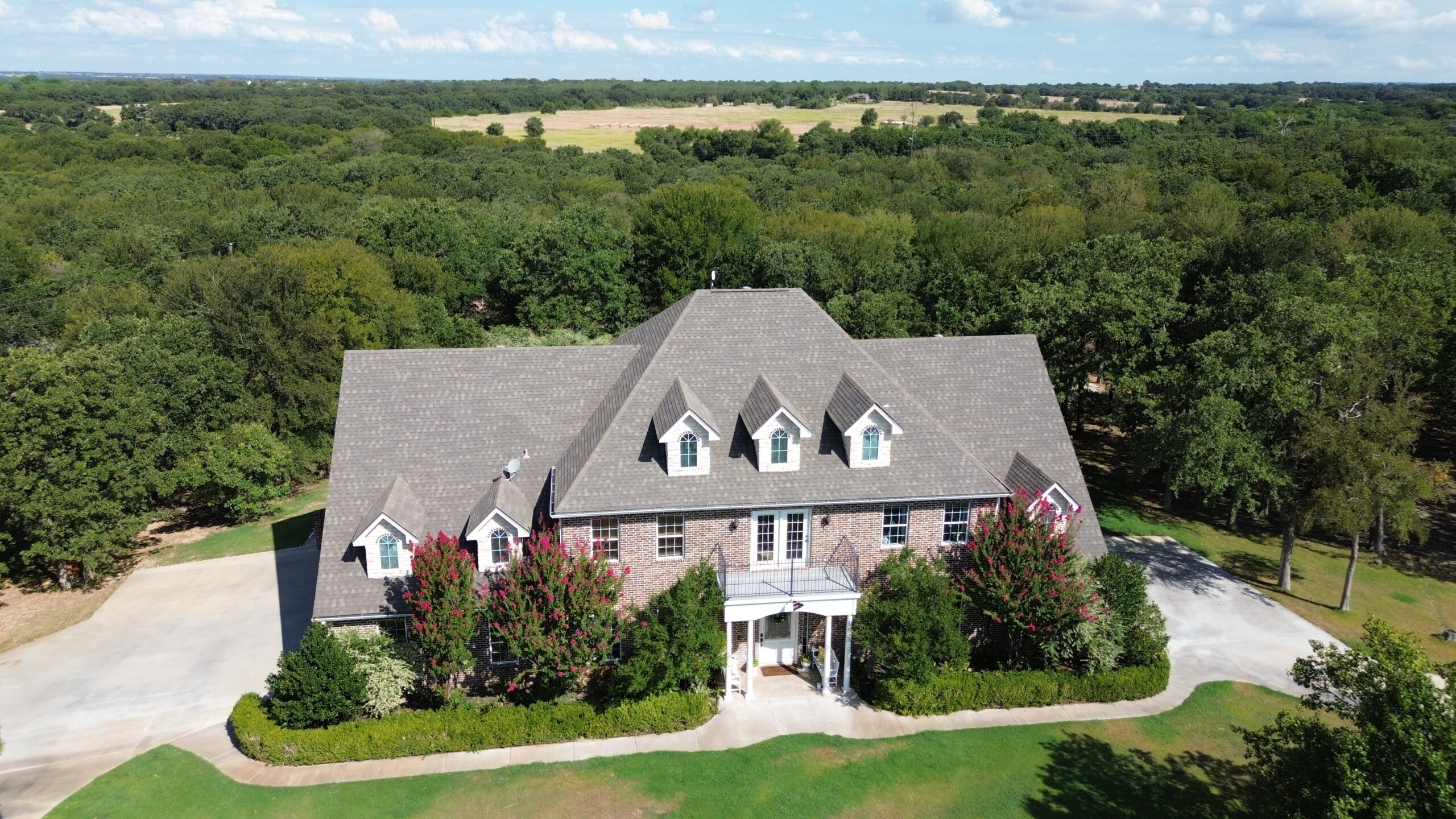

Why Professional Installation Matters

Professional roofing installation is important because layering requires more than placing materials in a particular order. Installers need to understand how components overlap, how water moves across the roof, where ventilation pathways are located, and how different materials interact. They also need to recognize when a standard installation approach needs to be adjusted for a specific roof design.

Manufacturer instructions and project specifications should guide the installation process. Roofing products can have different requirements for fastening, spacing, overlaps, ventilation, flashing, and acceptable installation conditions. Following these requirements helps ensure that the completed assembly performs according to its intended design.

Experienced roofing crews also understand the importance of inspecting concealed work. Rather than waiting until the entire roof is finished, they can review each stage and address defects while the relevant area remains accessible. This staged approach supports better quality control and reduces unnecessary rework.

Conclusion

Roofing systems are layered assemblies designed to provide much more than a visible weather-resistant surface. The roof deck establishes the structural foundation, while underlayment and protective membranes add moisture resistance, flashing protects vulnerable transitions, ventilation supports airflow where designed, and the outer roofing material provides the primary exposed barrier against weather.

The order in which these layers are installed is important because each component needs to work with the materials around it. Proper overlaps, fastening, flashing, drainage, ventilation, and transitions help create continuity throughout the roofing assembly. When one component is incorrectly installed or omitted, the performance of the entire system can be affected.

A professional installation therefore requires careful preparation and inspection at every stage. Contractors should inspect the roof deck before covering it, review protective layers before they become concealed, coordinate flashing and ventilation with the main roof covering, and complete a detailed final inspection after all layers are installed.

The exact layers can differ between asphalt shingle, metal, tile, and low-slope membrane systems, but the underlying principle remains the same. A reliable roofing system is created by combining the right components in the right sequence and ensuring that each layer performs its intended role as part of one complete assembly.

When roofing layers are installed with proper planning, quality control, and attention to manufacturer requirements, the finished roof can provide stronger moisture protection, dependable drainage, effective ventilation, and improved long-term durability. Understanding this layered approach also helps property owners recognize why professional roofing installation involves many carefully coordinated steps beneath the surface of the finished roof.
